Mobile Truck Scales
Portable Truck Scales for Fast Deployment and Heavy Industrial Weighing
Portable truck scales provide a practical weighing solution for operations that require mobility, rapid deployment, and reliable vehicle weight measurement. Designed for heavy industrial use, these systems support logistics operations, mining sites, construction projects, refineries, and temporary weighing locations where a traditional permanent weighbridge may not be practical.
The modular design simplifies transportation, installation, and relocation while maintaining accurate weighing performance.
Technical Specifications
| Specification | Value |
|---|---|
| Weighing Capacity | 100 Tons |
| Platform Size | 3 m × 18 m |
| Structure | Modular, 3 Sections |
| Top Plate | 10 mm Smooth or Patterned |
| Beam Height | 300 mm |
| Coating Standard | ISO 12944 Compliant |
Built for Saudi Arabia's Harsh Conditions
Industrial weighing equipment is regularly exposed to high temperatures, dust, humidity, and demanding operating environments. To support long-term reliability, the portable truck scale incorporates a corrosion protection system designed to help preserve structural integrity while reducing maintenance requirements over time.
Corrosion Protection System
| Feature | Specification |
|---|---|
| Total Coating Thickness | 120 µm |
| Primer Layer | Epoxy Zinc Primer – 50 µm |
| Top Coats | Polyester Alkyd – 35 µm + 35 µm |
| Surface Preparation | Sandblasted Surface |
| Compliance Standard | ISO 12944 |
| Design Service Life | Up to 15 Years |
Additional design features include:
- Heavy-duty 300 mm beam structure
- 10 mm steel deck construction
- Optional anti-slip patterned surface
- Suitable for remote and demanding industrial environments

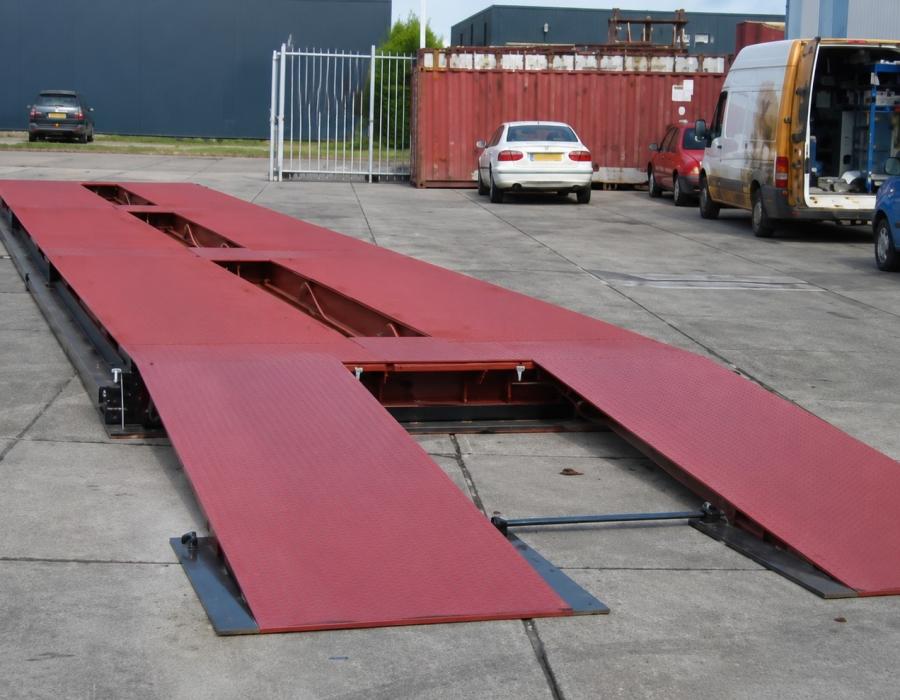

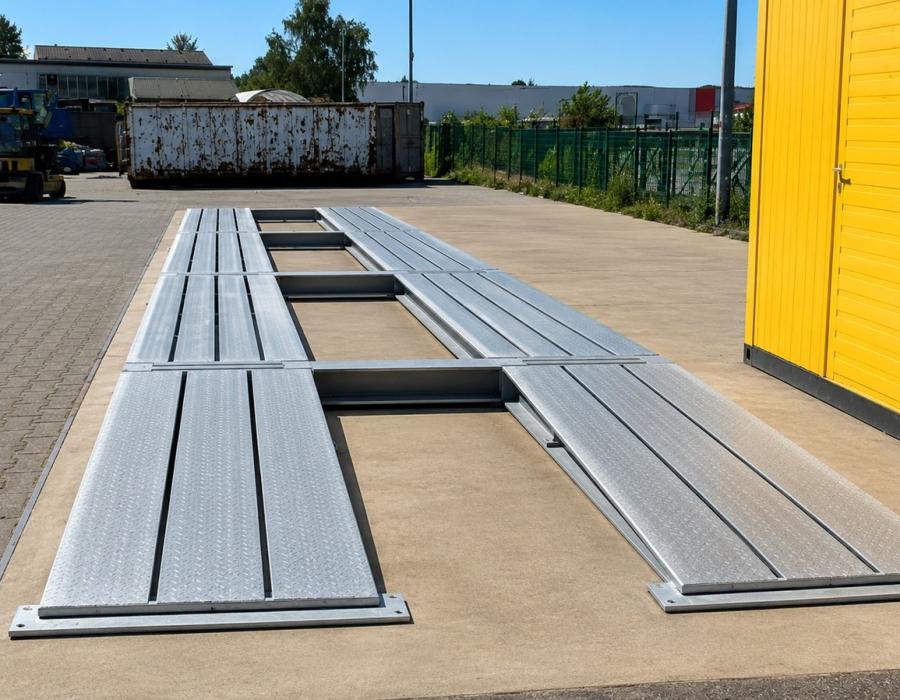

Modular Design for Easy Transport and Installation
Portable truck scales are designed to simplify transportation, deployment, and relocation. The modular three-section structure allows the system to be transported more efficiently while reducing installation time and site preparation requirements.
This makes it particularly suitable for temporary projects, remote industrial locations, and operations that may require weighing equipment at multiple sites.
Key Advantages
- Modular three-section platform design
- Efficient transportation and handling
- Faster installation compared to conventional weighbridge systems
- Reduced on-site labour requirements
- No module flipping required during installation
- Suitable for temporary and multi-site operations
- Simplified relocation when operational requirements change
The portable design helps organizations deploy vehicle weighing capabilities quickly while maintaining the accuracy, durability, and reliability required for industrial weighing applications.
