Dump Truck Scales
Choosing the Right Dump Truck Weighing Solution
Dump truck weighing requirements vary depending on where and how weight needs to be measured. Some operations require continuous payload monitoring during loading, while others require certified vehicle weighing for site entry, dispatch, or invoicing. To support these different operational needs, dump truck weighing solutions are commonly available as onboard weighing systems and static weighbridge scales.
Onboard Scales
Onboard weighing systems are designed for real-time payload monitoring directly on the vehicle.
- Installed directly on the dump truck
- Displays payload information inside the cab during loading
- Helps prevent overloading before transport
- Improves payload utilization and fleet productivity

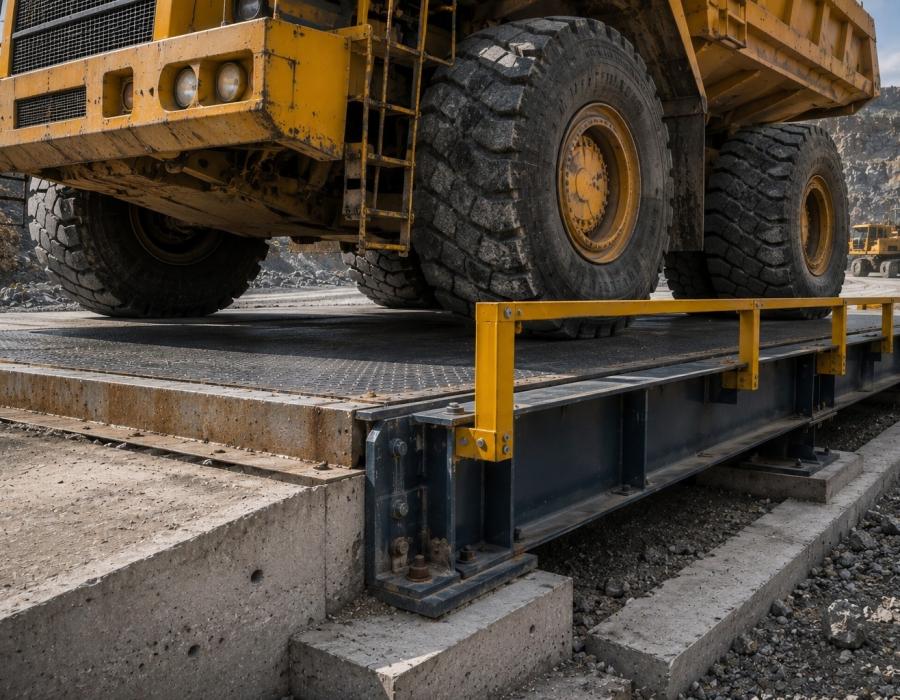

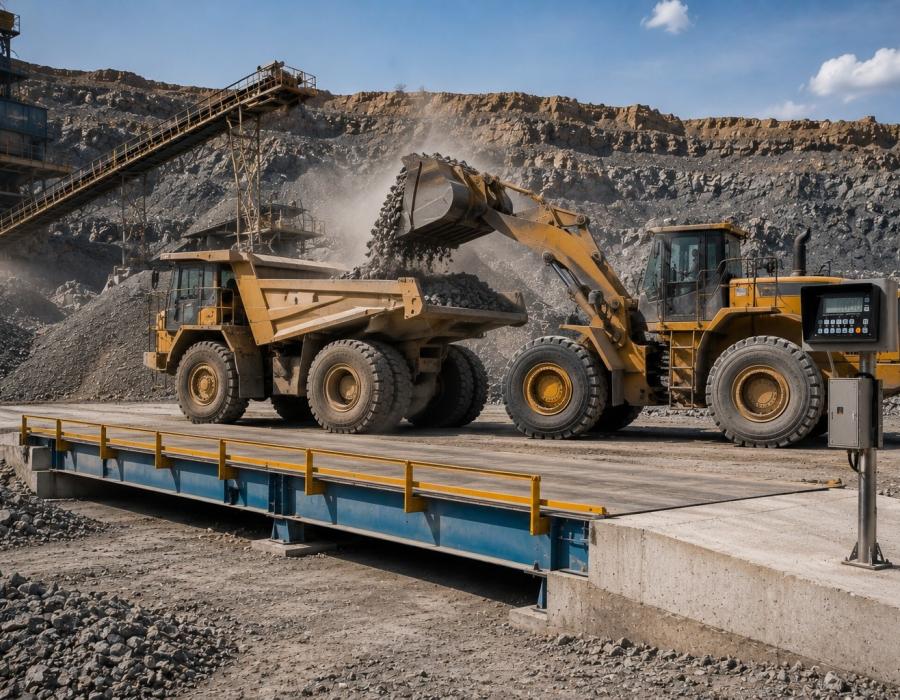

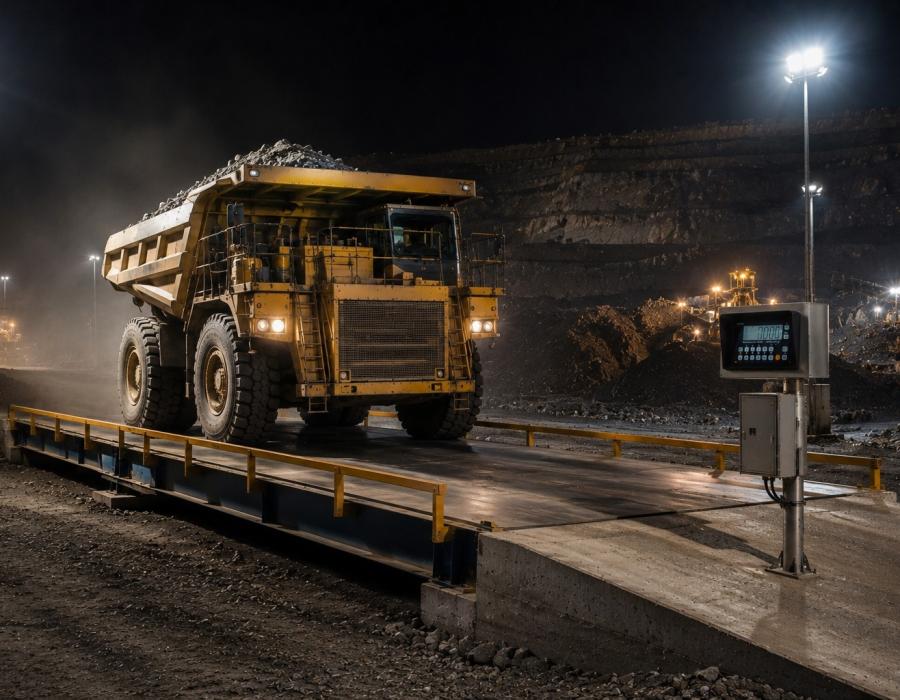

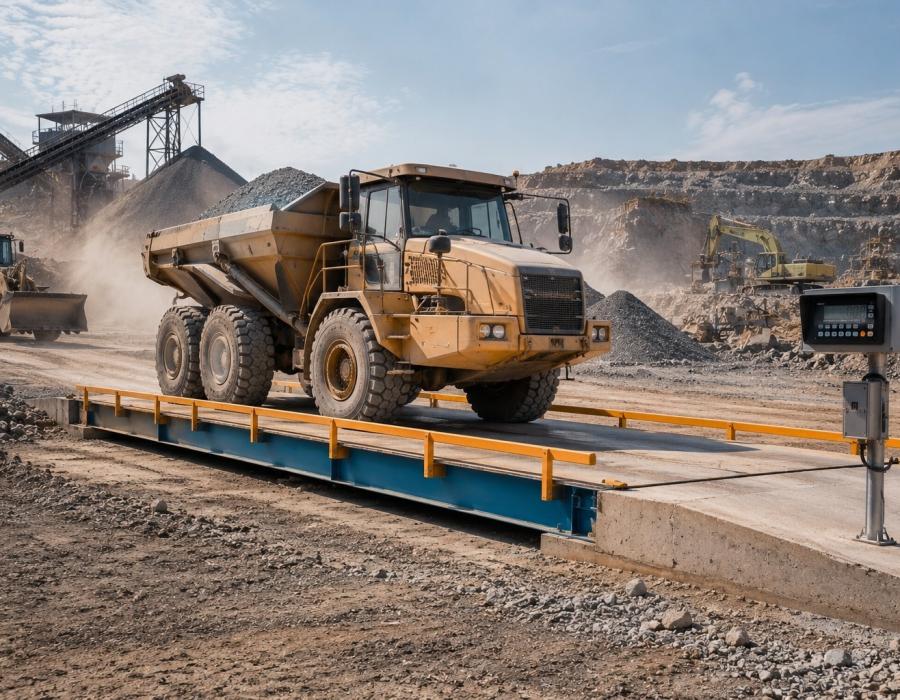

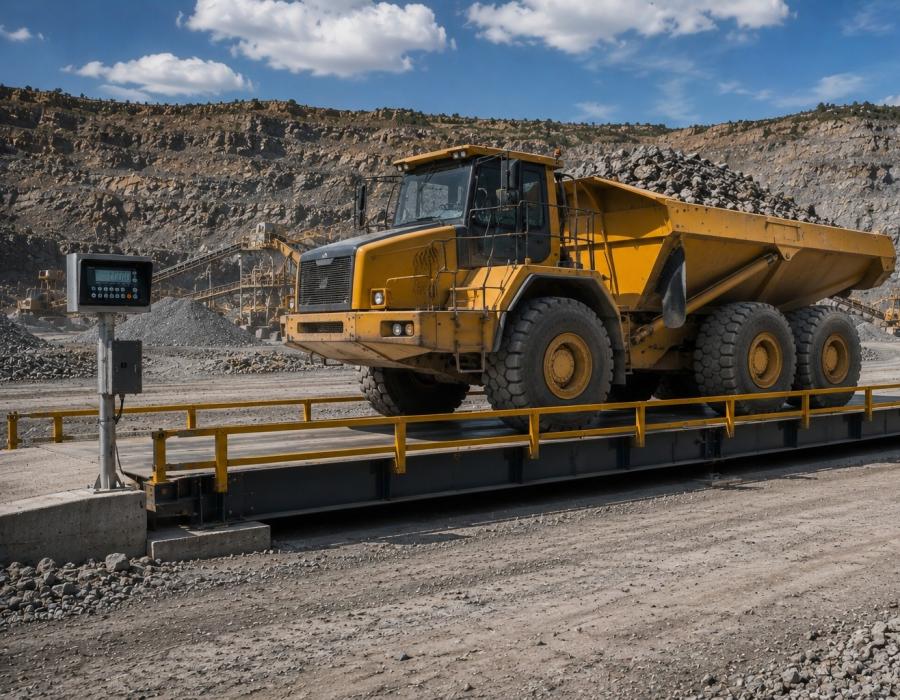

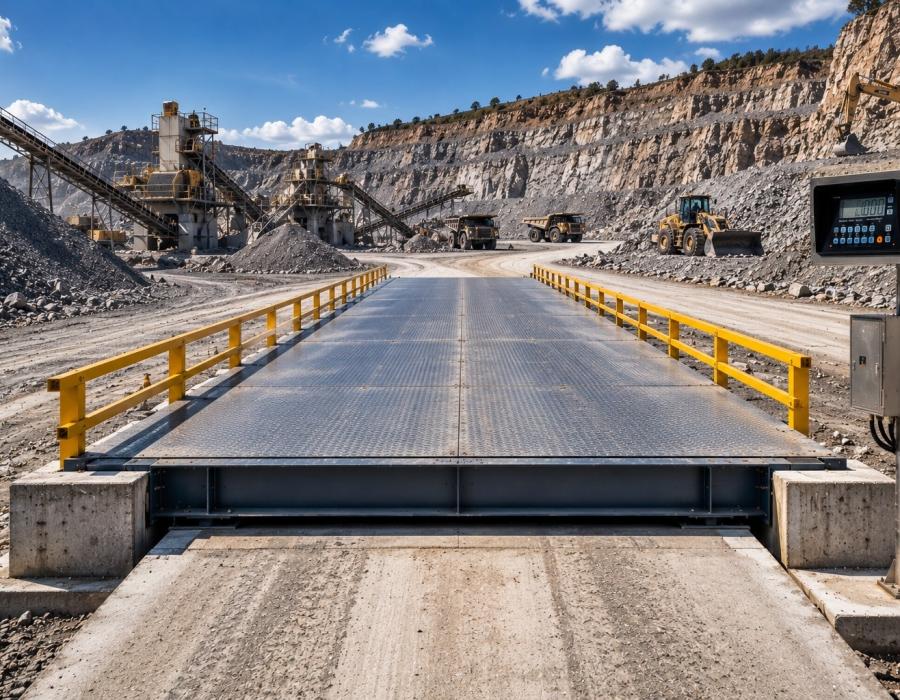

Weighbridge Scales
Weighbridge systems provide certified vehicle weight measurements at fixed site locations.
- Installed as a permanent weighing platform
- Records gross, tare, and net vehicle weight
- Supports dispatch, invoicing, and compliance requirements
- Suitable for site entry and exit weight verification
Product Specifications and Configuration
Weighbridge Scales
| Parameter | Typical Configuration |
|---|---|
| Capacity | 30–150 t Gross |
| Platform Length | 9–18 m Modular |
| Deck Material | Steel or Concrete |
| Load Cells | Compression or Shear Beam |
| Foundation Type | Pit or Pitless |
| Accuracy | OIML Class III Model Dependent |
Onboard Scales
| Parameter | Typical Configuration |
|---|---|
| Mounting Method | Chassis, Hinge Pin or Hydraulic |
| Display | In-Cab Digital Display |
| Weight Data | Gross, Net and Payload Weight |
| Power Supply | 12V / 24V Vehicle System |
| Output | Local Display with Optional Data Export |
Specifications may vary depending on vehicle type and project requirements.
Applications Across Heavy Industries
Dump truck scales support efficient payload management and reliable weight control across demanding industrial environments.
Typical applications include:
- Mining and quarry operations
- Construction and earthmoving projects
- Cement and aggregate production
- Waste and recycling facilities
- Ports and bulk material handling terminals
Accurate weighing helps improve loading efficiency, reduce overload risks, maintain reliable operational records, and support better material management throughout the transport process.
Standards and Compliance
Depending on the selected solution, dump truck scales can support applicable industry standards and project requirements, including:
- OIML R76 compliant weighing systems
- Legal-for-trade configurations where applicable
- Periodic calibration and system verification
- Reliable performance for demanding industrial environments
Operational Integration and Data Management
Modern dump truck weighing solutions can integrate with existing operational systems, helping organizations improve reporting, vehicle tracking, and transaction management across single or multiple sites.
The system can support:
- ERP and fleet management software integration
- RFID and ANPR vehicle identification
- Automatic ticket printing
- Cloud-based reporting and remote monitoring
- Digital weight records and transaction history
- Multi-site operational reporting
- Historical data storage for analysis and auditing
