Industrial Heavy-Duty Platform Scales
Industrial Heavy-Duty Platform Scales for Reliable Material Handling
A platform scale is a floor-mounted or surface-mounted weighing system built around a low, flat load-bearing platform, used to weigh pallets, containers, drums, and bulk industrial loads too large or heavy for a bench scale. Industrial heavy-duty platform scales are designed for accurate weighing of these loads across demanding working environments. Their robust construction, multiple platform sizes, and configurable weighing capacities make them suitable for manufacturing plants, warehouses, logistics facilities, food processing, petrochemical operations, and other industrial applications.
Whether used for production control, incoming goods inspection, shipping verification, or inventory management, these platform scales provide dependable weighing performance while supporting efficient day-to-day operations.
Features and Configuration Options
Heavy-duty platform scales can be configured to meet different operational requirements with features such as:
- Steel or stainless steel platform construction
- Low-profile platform design for easy loading
- Single or four-load-cell configurations
- Surface-mounted or flush floor installation
- IP67 junction boxes and IP68 load cells
- OIML-approved weighing configurations
- Optional ATEX versions for hazardous areas
- Compatible with digital indicators, printers, and weighing software
System Specifications
| Parameter | Typical Configuration |
|---|---|
| Capacity Range | 300 kg – 10,000 kg* |
| Platform Size | Approx. 600 × 600 mm – 2000 × 2000 mm, depending on capacity |
| Platform Material | Steel or Stainless Steel |
| Load Cell Type | Single or Four-Cell Configuration |
| Protection Rating | IP67 Junction Box / IP68 Load Cells |
| Installation | Surface or Flush Floor |
| Platform Profile | Low Profile |
| Power Supply | Up to 15 VDC |
| Approval Options | OIML Models Available* |
Specifications may vary depending on the selected model. Platform size shown is an approximate typical range for this capacity class and should be confirmed against Himatrix's actual model line-up before publishing.
Choosing the Right Configuration
The right platform scale depends on the load, the environment, and how the goods arrive at the scale:
- Load weight and size — select capacity and platform size with headroom above the heaviest expected load, not just its average weight.

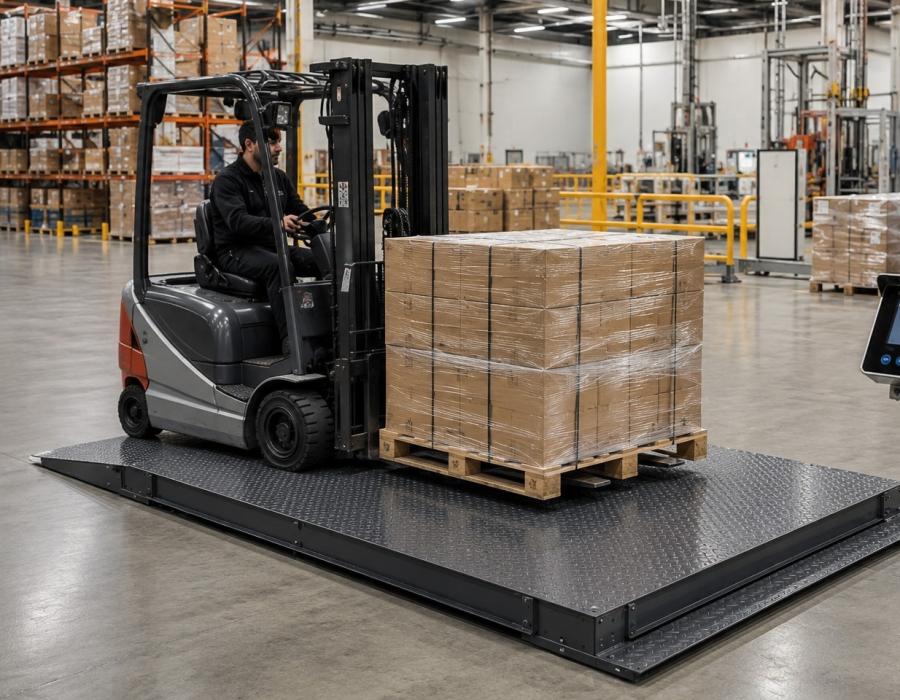

- How goods are loaded — where pallets or drums are moved by pallet truck or forklift rather than placed by hand, pallet scales may be a better fit than a static platform.
- Load below platform range — for smaller parcels, components, or counting applications, a bench scale is usually more practical than an oversized platform.

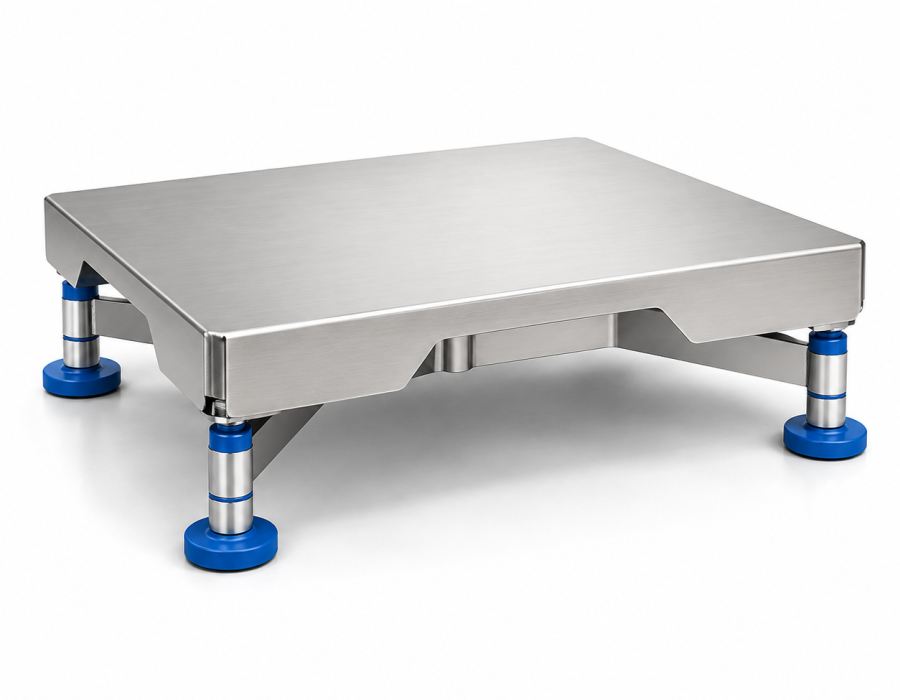

- Environment — washdown, food-grade, or corrosive environments generally call for stainless steel construction and a higher IP rating; hazardous areas require explosion proof scales built for that environment.
- Compliance need — confirm whether the application requires legal-for-trade/OIML-approved weighing before finalizing the model.
Speak to Himatrix Arabia's team to match a configuration to your load profile and site conditions.
Designed for Diverse Industrial Applications
Heavy-duty platform scales are used wherever reliable weighing of heavy products, pallets, containers, and bulk materials is required.
Typical applications include:
- Manufacturing and production facilities
- Logistics and warehousing
- Petrochemical and oil & gas operations
- Metal fabrication and processing
- Construction material handling
- Food and beverage production
- Waste management and recycling
- Pharmaceutical manufacturing
Reliable weight measurement helps improve inventory control, production efficiency, material handling, and quality assurance throughout industrial operations.
Installation, Accessories and Compliance
Platform scales can be configured to match different site layouts and operational requirements while supporting recognised industry standards where required.
Installation Options
- Surface-mounted installation
- Flush floor pit installation
- Stainless steel access ramps
- Fixed floor mounting for high-traffic areas
Compatible Accessories
- Digital weight indicators
- Indicator support columns
- Junction boxes
- Ticket and label printers
- Weighing software integration
Compliance Options
- OIML-approved configurations
- Legal-for-trade options
- ISO 17025 calibration support
- ATEX / IECEx options for hazardous environments where applicable
The final configuration can be selected based on the weighing capacity, operating environment, installation requirements, and applicable compliance standards.
Himatrix Arabia's metrology and calibration services support ongoing accuracy for platform scales in service, using traceable, ISO 17025-accredited reference standards.
Platform Scales in Saudi Arabia
Himatrix Arabia supplies heavy-duty platform scales to manufacturing, logistics, warehousing, and processing operations across Saudi Arabia, with local delivery, installation guidance, and calibration support. Platform scales specified for outdoor loading docks or unconditioned warehouse space in the Kingdom should account for heat, dust, and humidity where relevant — ask Himatrix Arabia's team about protection ratings and construction options suited to your site conditions. As a platform scale supplier in Saudi Arabia, Himatrix Arabia can also confirm which configurations meet applicable Saudi and GCC conformity requirements for your specific application.
