Weigh Bridges
- Steel Deck Weighbridges
- Concrete Weighbridges

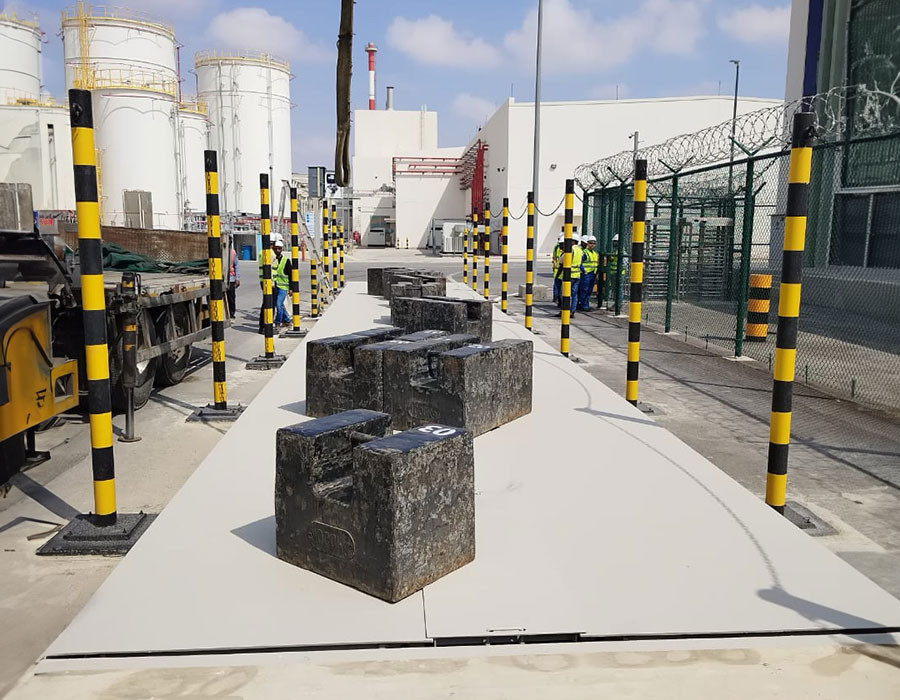

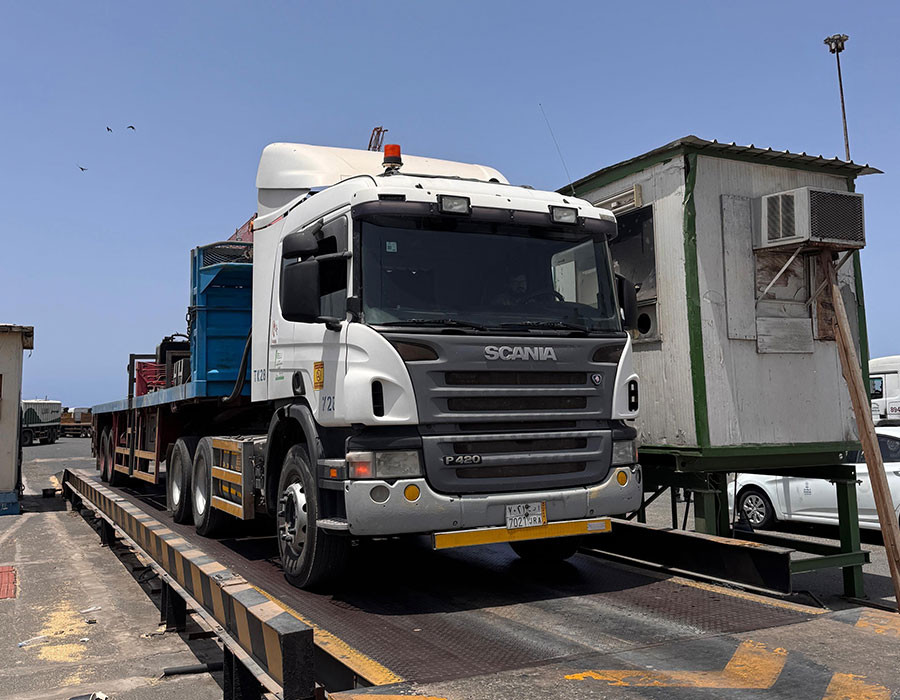

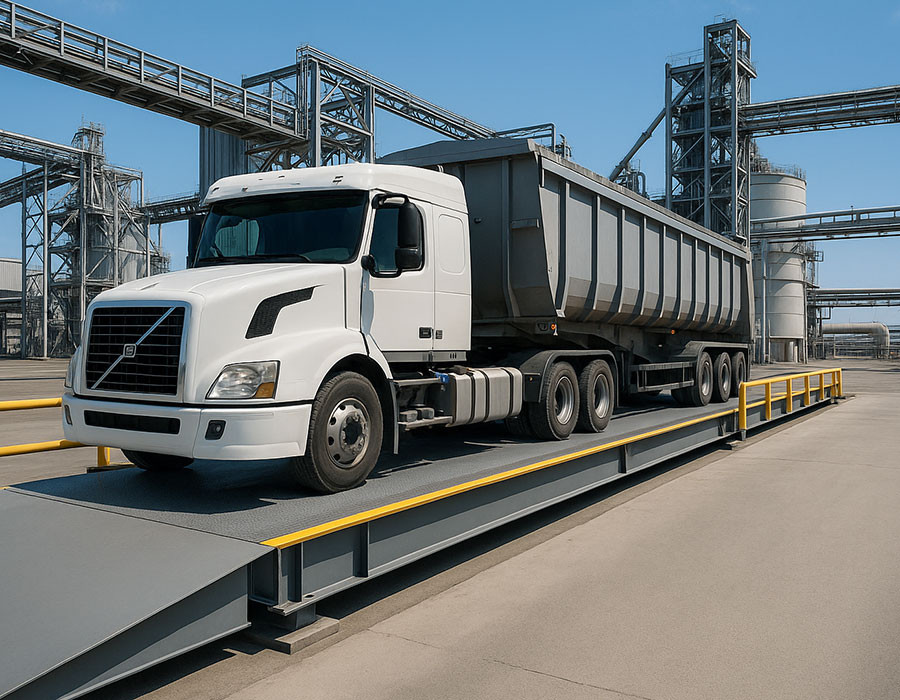

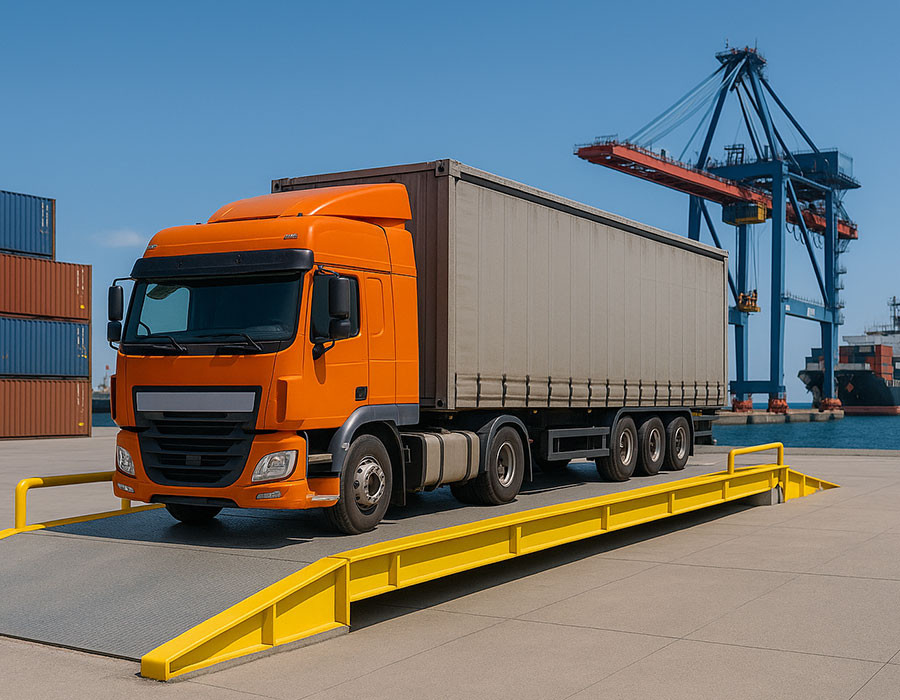

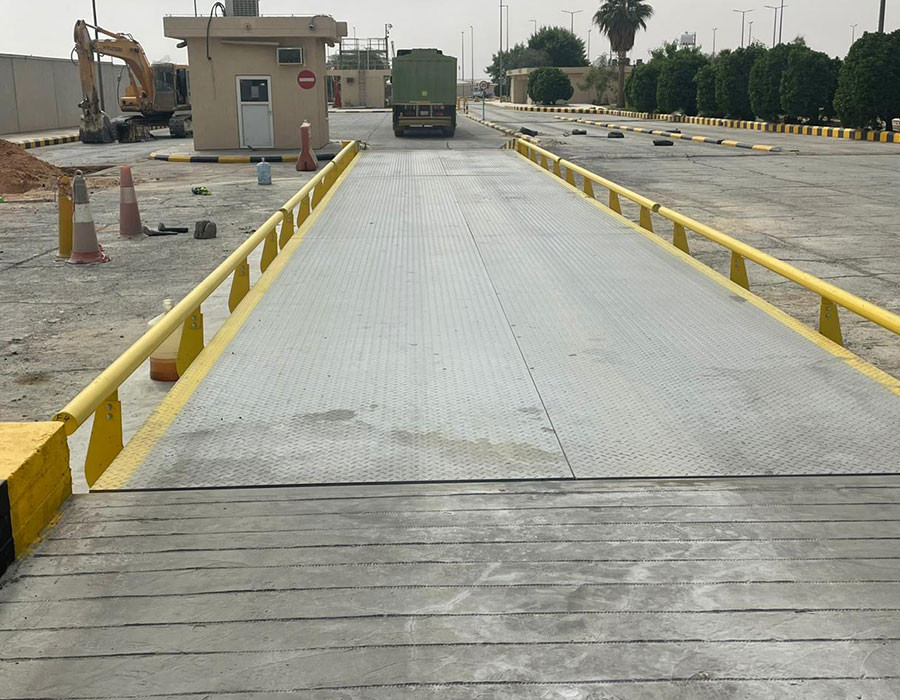

1. Steel Deck Weighbridges:
- High-grade structural steel for enhanced strength and durability
- Orthotropic design that minimizes stress and wear

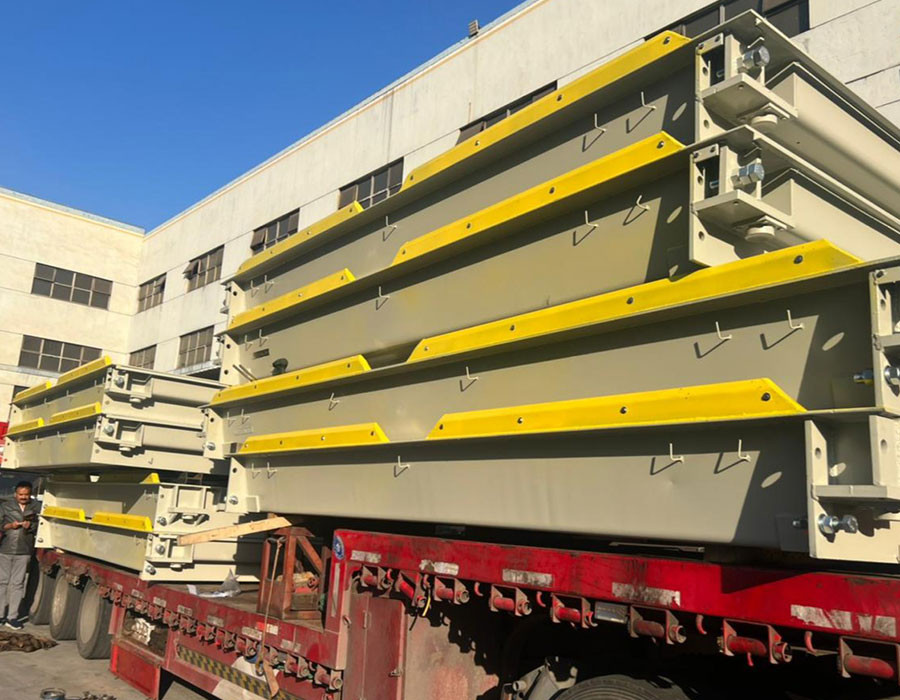

- Modular deck options available for flexible installation
- Corrosion-resistant coatings for long-term protection
Sizes and Capacities:
| Platform Size WxL (m) | Max. Capacity (t) | CLC (t) | Increment (kg) |
|---|---|---|---|
| 3x6 (6) | 30 | 25 | 10 |
| 3x12 (6+6) | 50 | 35 | 10 |
| 3x18 (6+6+6) | 100 | 40 | 20 |
| 3x21 (5.3+5.3+5.3+5.3) | 100 | 40 | 20 |
| 3x24 (6+6+6+6) | 120 | 40 | 20 |

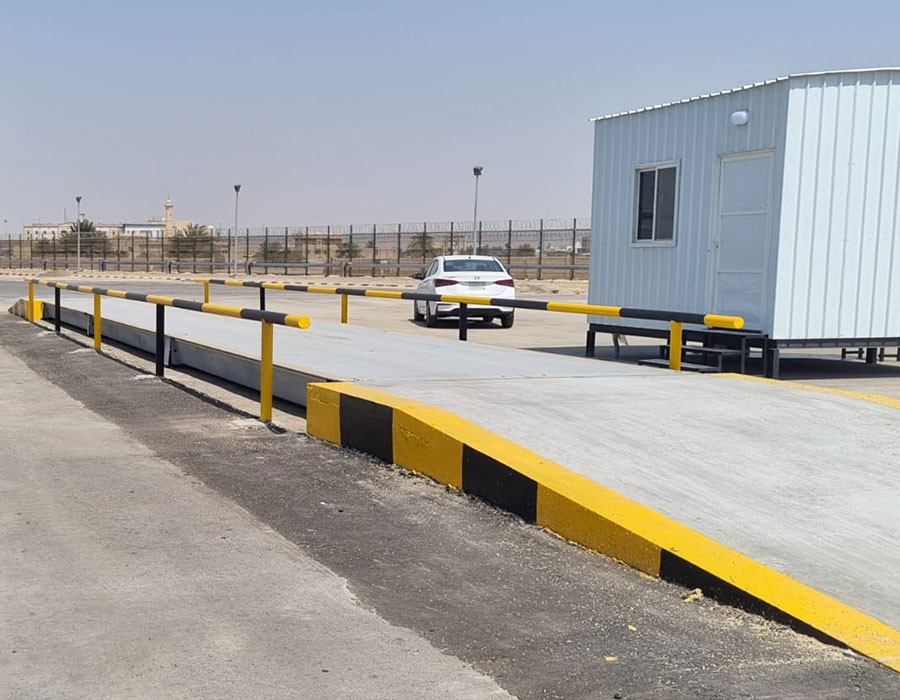

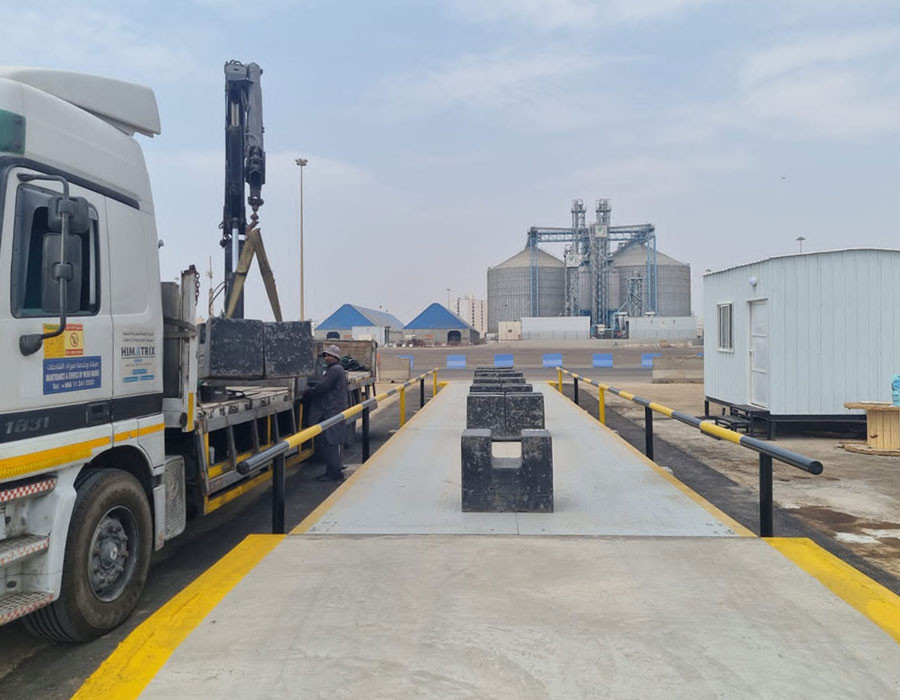

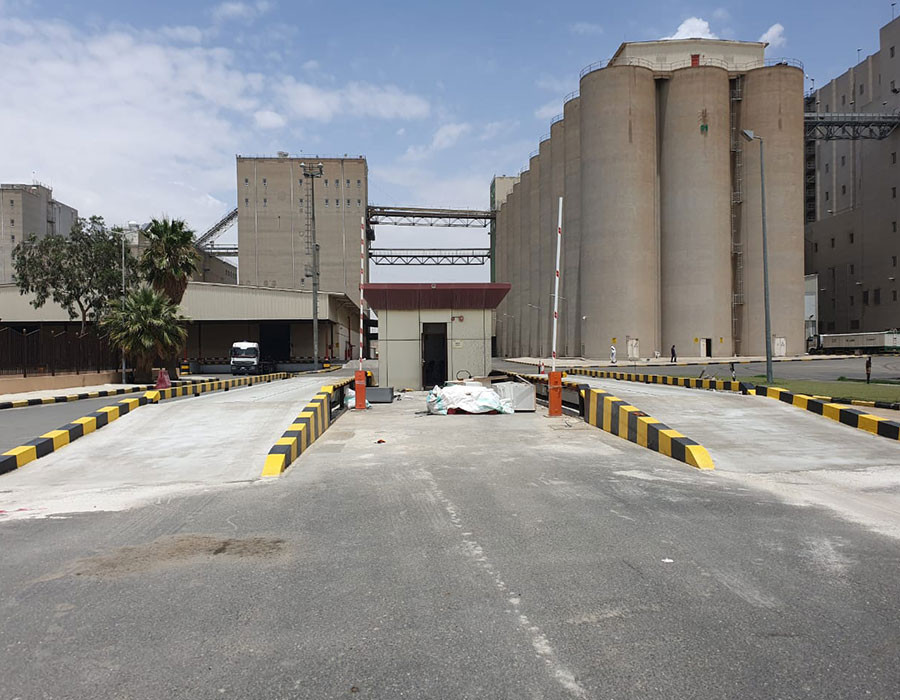

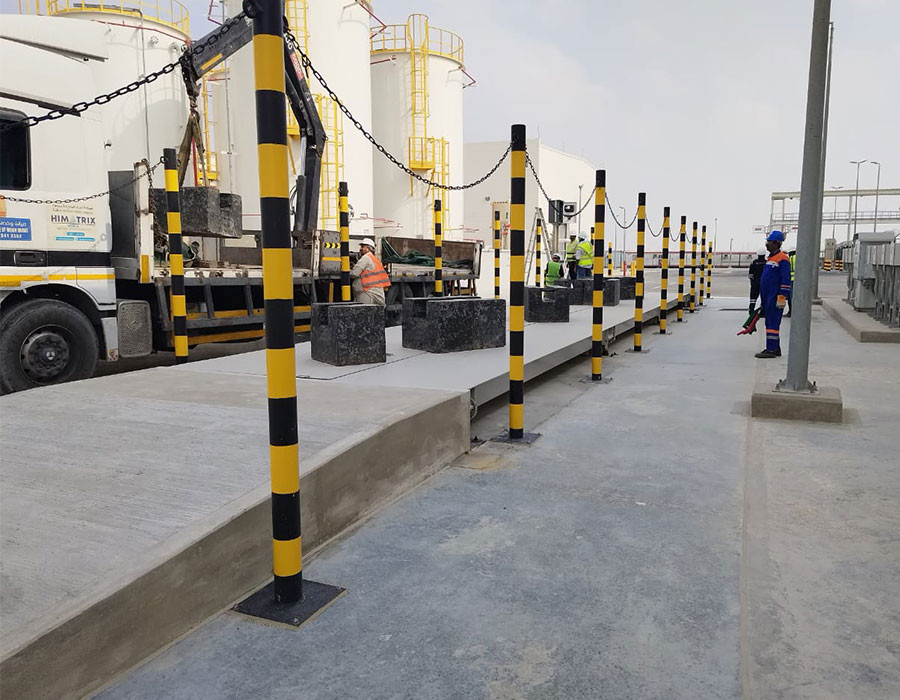

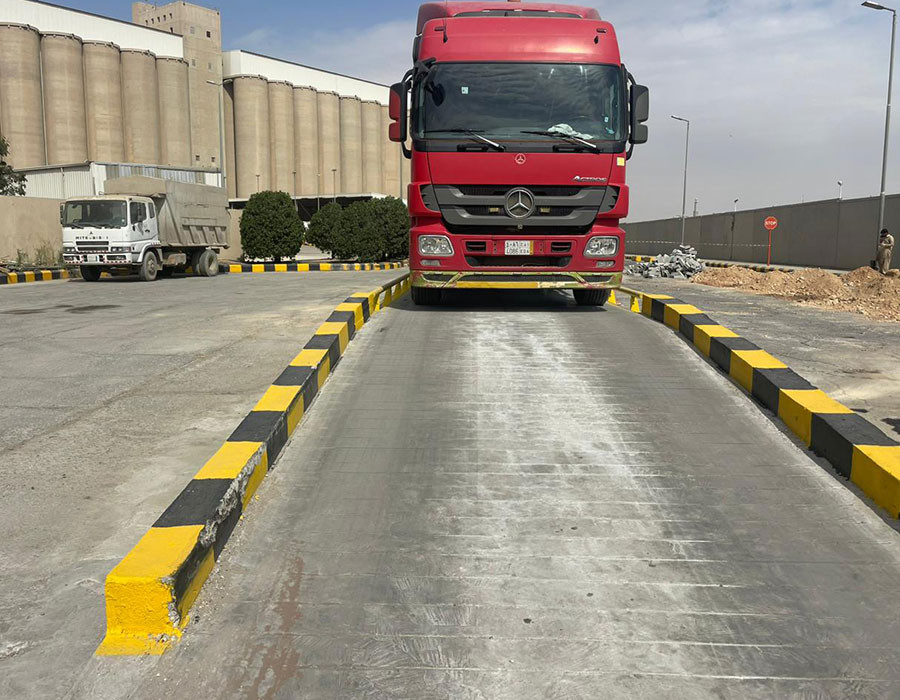

2. Concrete Weighbridges:
- High-grade structural steel for enhanced strength and durability
- Orthotropic design that minimizes stress and wear
- Modular deck options available for flexible installation
- Corrosion-resistant coatings for long-term protection
Sizes and Capacities:
| Platform Size WxL (m) | Max. Capacity (t) | CLC (t) | Increment (kg) |
|---|---|---|---|
| 3x18 (6+6+6) | 100 | 20 | 10 |
| 3x21 (5.3+5.3+5.3+5.3) | 100 | 20 | 10 |
| 3x24 (6+6+6+6) | 100 | 20 | 10 |

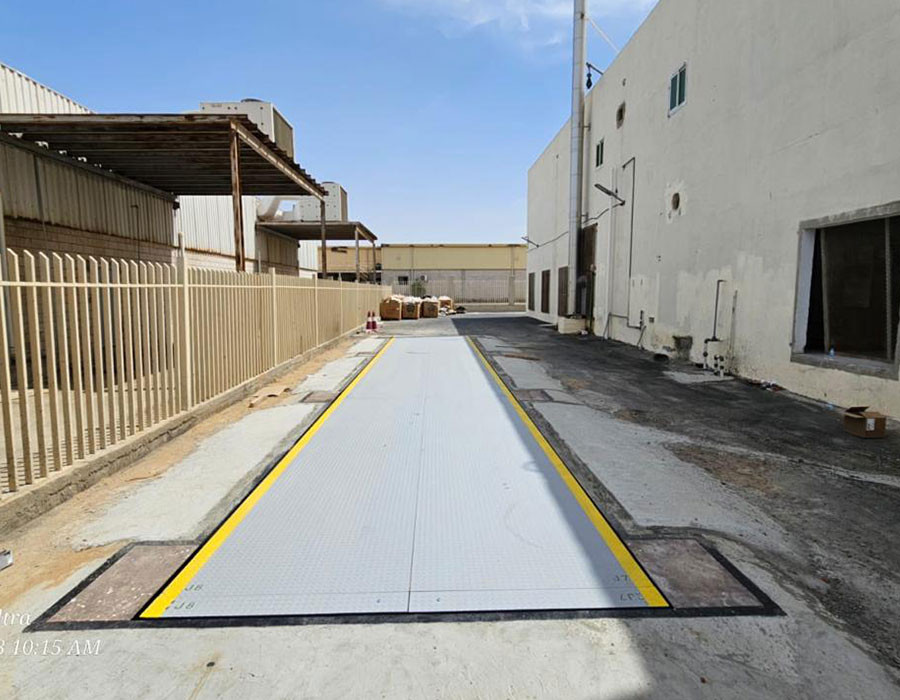

The foundation options for both products are:
- Shallow Pit Foundation: Ideal for locations with limited space and where underground abling is preferred.
- Pitless Foundation: This option allows for easy installation and removal.
